ELD-100W-24VDC-UL

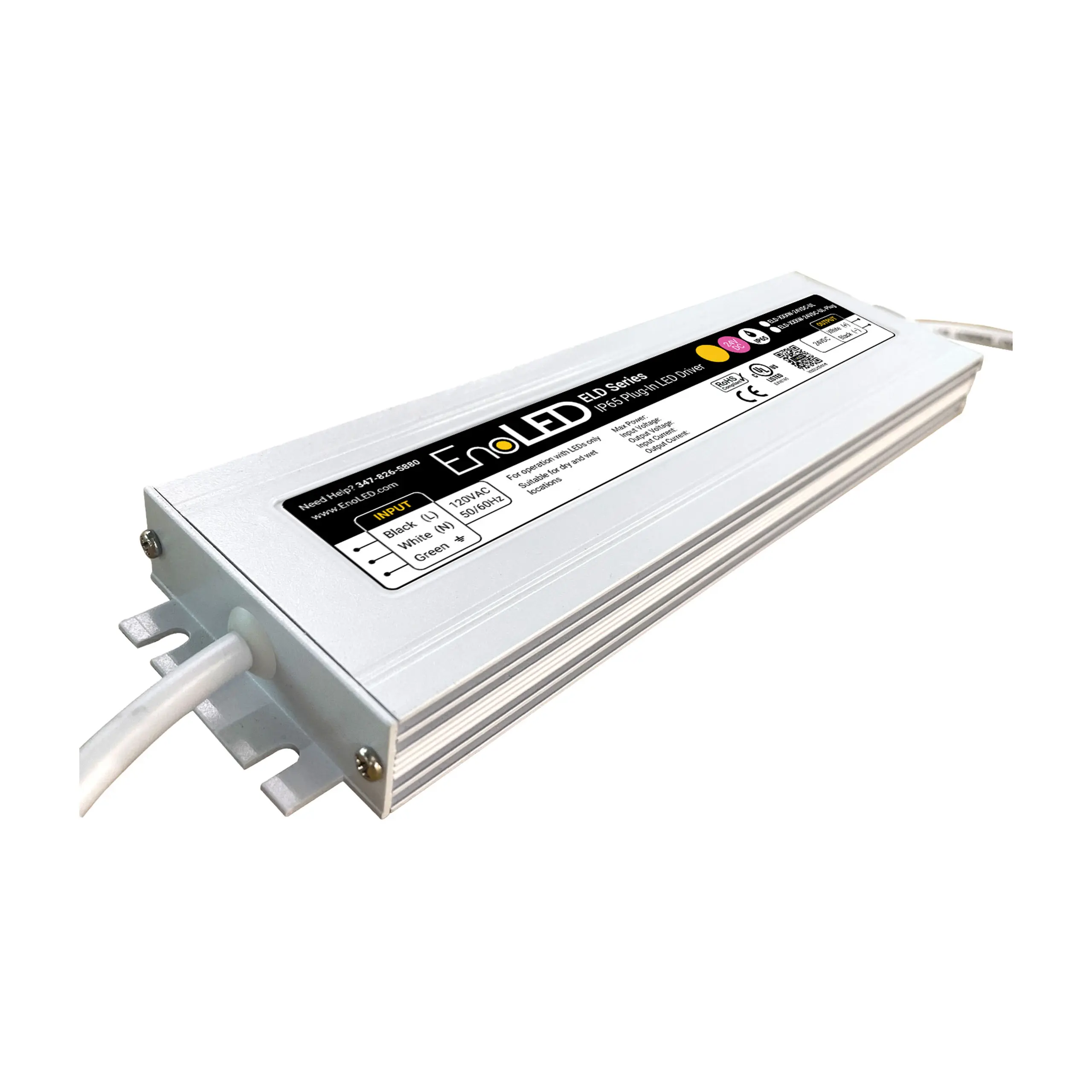

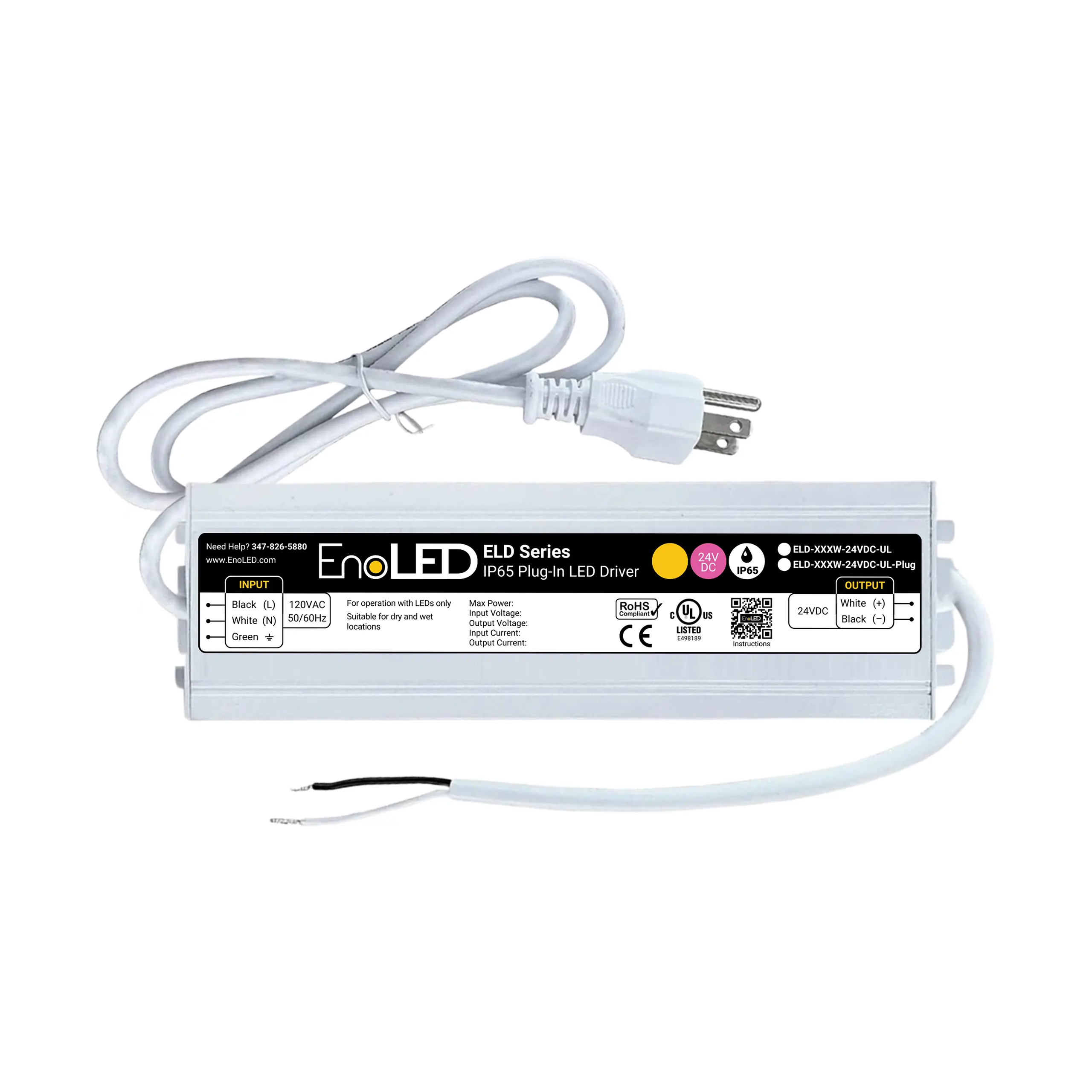

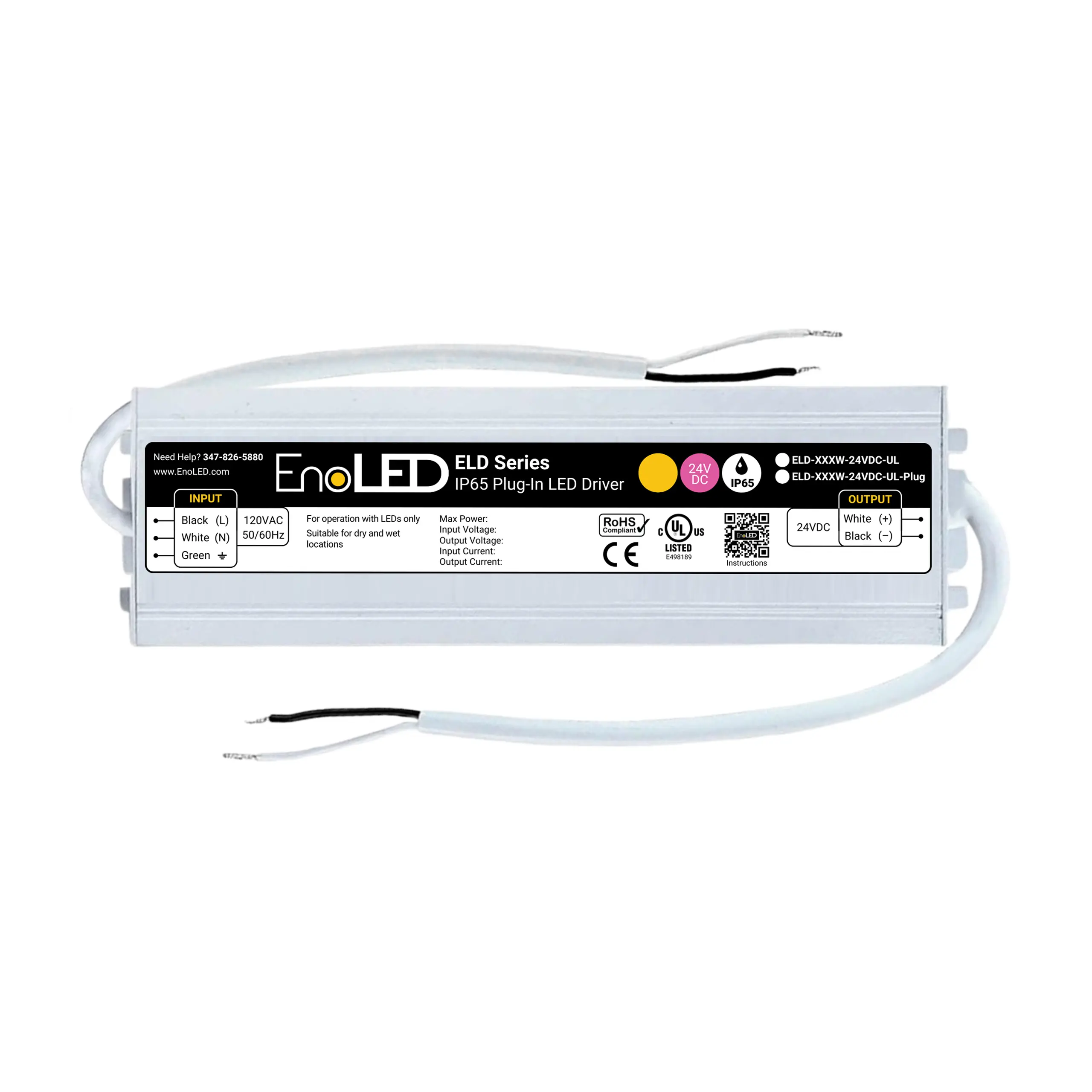

ELD 100W, 24VDC Plug-In LED driver
DESCRIPTION
The EnoLED ELD driver line offers easy, hassle-free installation with a built-in 120V AC input plug—no electrician needed. Available in 60W, 100W, 150W, and 200W models. All drivers are UL-listed, IP65 rated for wet or dry locations, and deliver high efficiency over 89%. Ideal for residential and commercial applications, the ELD driver line is compatible with any 24VDC LED application.
FEATURES
- Plug-and-Play: No electrician needed—just plug in and power up.
- Available in 60W, 100W, 150W, and 200W models.
- Compact Design: under 0.8" in height, ideal for tight spaces.
- UL Certified: Safe for various environments.
- IP65 Rated: Suitable for wet and dry locations.
- High Efficiency: Over 89% efficiency at full load.
- Overload, over temperature automatic reset.
| Product line | ELD |
| Input voltage | 120VAC |
| Output voltage | 24VDC |
| Max load | 100W |
| Dimmable | No |
| Operating Temp | -40°F -104°F (-40°C- 40°C) |
| Dimensions | 8×2.4×0.78 inch (L*W*H) |
| Environmental | IP65 |
| Certification | UL Certificated |
Ordering Information
| Ordering Code | Input Voltage | Output Voltage | Max Load | Class 2 | Dimmable | Environment | Dimensions |
|---|---|---|---|---|---|---|---|
ELD-60W-24VDC-UL | 120VAC | 24VDC | 60W | Yes | No | IP65 | 8" x 2.4" x 0.78" |
ELD-100W-24VDC-UL | 120VAC | 24VDC | 100W | Yes | No | IP65 | 8" x 2.4" x 0.78" |
ELD-150W-24VDC-UL | 120VAC | 24VDC | 150W | Yes | No | IP65 | 9.3" x 2.48" x 1.25" |
ELD-200W-24VDC-UL | 120VAC | 24VDC | 200W | Yes | No | IP65 | 9.3" x 2.48" x 1.25" |
